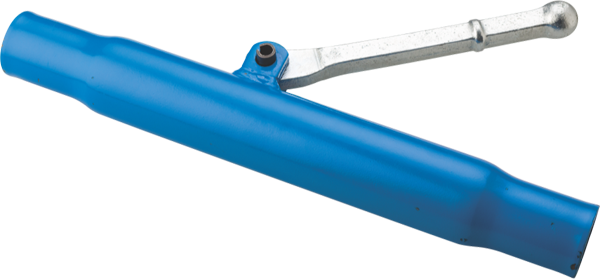

TOP LINK PIPE (BEND TOMMY ROD, WELPED PLATE)
CODE LENGTH
A
THREAD
D
TOP LINK PIPE M 27 X 3
KTLP 273270 BT 270 M 27 X 3
KTLP 273330 BT 330 M 27 X 3
KTLP 273370 BT 370 M 27 X 3
KTLP 273400 BT 400 M 27 X 3
KTLP 273420 BT 420 M 27 X 3
KTLP 273460 BT 460 M 27 X 3
KTLP 273480 BT 480 M 27 X 3
KTLP 273520 BT 520 M 27 X 3
KTLP 273600 BT 600 M 27 X 3
TOP LINK PIPE M 30 X 3.5
KTLP 3035270 BT 270 M 30 X 3.5
KTLP 3035330 BT 330 M 30 X 3.5
KTLP 3035370 BT 370 M 30 X 3.5
KTLP 3035405 BT 405 M 30 X 3.5
KTLP 3035450 BT 450 M 30 X 3.5
KTLP 3035510 BT 510 M 30 X 3.5
TOP LINK PIPE M 36 X 3 (WITH GREASE NIPPLE)
KTLP 363255 BT 255 M 36 X 3
KTLP 363370 BT 370 M 36 X 3
KTLP 363400 BT 400 M 36 X 3
KTLP 363440 BT 440 M 36 X 3
KTLP 363460 BT 460 M 36 X 3
KTLP 363500 BT 500 M 36 X 3
KTLP 363580 BT 580 M 36 X 3
KTLP 363660 BT 660 M 36 X 3
KNUCKLE END W/O SPINDLE, WITH PIN
CODE D1 D2 L1 L2 L3 TYPE
KE 20 20.2 28 63 40 87 A
KE 25 25.4 28 63 40 87 A
KE 28 28.4 28 63 40 87 A
KE 32 32 28 63 40 87 A
KE 20-L 20.2 28 133 40 87 B
KE 25-L 25.4 28 133 40 87 B
KE 28-L 28.4 28 133 40 87 B
KE 32-L 32 28 133 40 87 B
KE FIAT (NH) 28.4 28 57 40 70 C
