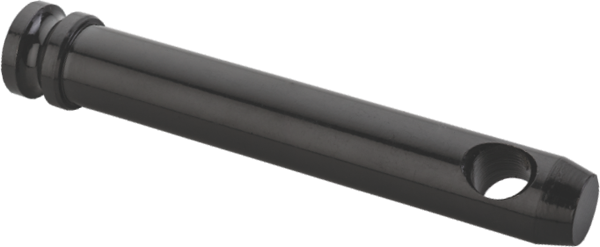

TOP LINK PIN
| CODE | A | B | C | D | E | F | G |
| TLP12040 | 12 | 40 | 15 | 15 | 11 | 55 | 6.3 |
| TLP12080 | 12 | 80 | 15 | 15 | 11 | 95 | 6.3 |
| TLP14040 | 14 | 40 | 15 | 17 | 12 | 55 | 8.3 |
| TLP14082 | 14 | 82 | 15 | 17 | 12 | 97 | 8.3 |
| TLP16040 | 16 | 40 | 15 | 20 | 13 | 55 | 8.3 |
| TLP16045 | 16 | 45 | 15 | 20 | 13 | 60 | 8.3 |
| TLP16070 | 16 | 70 | 15 | 20 | 13 | 85 | 8.3 |
| TLP16076 | 16 | 76 | 15 | 20 | 13 | 91 | 8.3 |
| TLP16082 | 16 | 82 | 15 | 20 | 13 | 97 | 8.3 |
| TLP16086 | 16 | 86 | 15 | 20 | 13 | 101 | 8.3 |
| TLP16096 | 16 | 96 | 15 | 20 | 13 | 111 | 8.3 |
| TLP16100 | 16 | 100 | 15 | 20 | 13 | 115 | 8.3 |
| TLP16120 | 16 | 120 | 15 | 20 | 13 | 135 | 8.3 |
| TLP16125 | 16 | 125 | 15 | 20 | 13 | 140 | 8.3 |
| TLP16146 | 16 | 146 | 15 | 20 | 13 | 161 | 8.3 |
| TLP19046 | 19 | 46 | 17 | 25 | 18 | 61 | 12 |
| TLP19052 | 19 | 52 | 17 | 25 | 18 | 67 | 12 |
| TLP19065 | 19 | 65 | 17 | 25 | 18 | 80 | 12 |
| TLP19070 | 19 | 70 | 17 | 25 | 18 | 85 | 12 |
| TLP19076 | 19 | 76 | 17 | 25 | 18 | 91 | 12 |
| TLP19086 | 19 | 86 | 17 | 25 | 18 | 101 | 12 |
| TLP19092 | 19 | 92 | 17 | 25 | 18 | 107 | 12 |
| TLP19096 | 19 | 96 | 17 | 25 | 18 | 111 | 12 |
| TLP19103 | 19 | 103 | 17 | 25 | 18 | 118 | 12 |
| TLP19106 | 19 | 106 | 17 | 25 | 18 | 121 | 12 |
| TLP19110 | 19 | 110 | 17 | 25 | 18 | 125 | 12 |
| TLP19120 | 19 | 120 | 17 | 25 | 18 | 135 | 12 |
| TLP19125 | 19 | 125 | 17 | 25 | 18 | 140 | 12 |
| TLP19145 | 19 | 145 | 17 | 25 | 18 | 160 | 12 |
| TLP19165 | 19 | 165 | 17 | 25 | 18 | 180 | 12 |
| TLP22055 | 22 | 55 | 17 | 28 | 21 | 70 | 12 |
| TLP22076 | 22 | 76 | 17 | 28 | 21 | 91 | 12 |
| TLP22085 | 22 | 85 | 17 | 28 | 21 | 100 | 12 |
| TLP22095 | 22 | 95 | 17 | 28 | 21 | 110 | 12 |
| TLP22100 | 22 | 100 | 17 | 28 | 21 | 115 | 12 |
| TLP22106 | 22 | 106 | 17 | 28 | 21 | 121 | 12 |
| TLP22110 | 22 | 110 | 17 | 28 | 21 | 125 | 12 |
| TLP22125 | 22 | 125 | 17 | 28 | 21 | 140 | 12 |
| TLP22145 | 22 | 145 | 17 | 28 | 21 | 160 | 12 |
| TLP22155 | 22 | 155 | 17 | 28 | 21 | 170 | 12 |
